69.1 Introduction

Parasolid provides a comprehensive tool for filling holes in sheet and solid bodies with the function PK_BODY_fill_hole. As its name implies, this function can be used to fill holes in a body, but it also can be used to perform modelling operations in a wide variety of situations.

PK_BODY_fill_hole can be used to fill holes in bodies in all of these situations, either by asking Parasolid to generate a sheet for you, or by supplying a sheet to fill the hole yourself. This chapter explains how to use PK_BODY_fill_hole to perform these operations and provides complete details of the range of options and functionality available.

For an example of this functionality, see the code example in the C++\Code Examples\Modelling\LOP\Fill Hole folder, located in example_applications in your Parasolid installation folder.

Figure 69-1 Filling holes in bodies

Figure 69-2 Filling gaps between touching bodies

Figure 69-3 Using wires to add and create faces

69.1.1 Received arguments

PK_BODY_fill_hole receives the following arguments:

target

n_edges

edges

tolerance

options

A number of arguments are returned by the function to record tracking information and fault status. See Section 69.6, “Tracking and fault status”, for more information.

69.1.2 Summary of options

PK_BODY_fill_hole contains a wide variety of options to let you control the result of the operation. The following table summarizes the options that are available, full details of which are given in the rest of this chapter.

method

fill_sheet

patch_topology

fill_preference

non_smooth_edges

non_g2_smooth_edges

non_g1_behaviour

non_g2_behaviour

smoothness

internal_smoothness

attach_sheet

supporting_bodies

imprint_supporting_bodies

n_clamps

clamps

clamp_indices

optimise

body_type

check_fa_fa

update

tracking_control

[back to top]

69.2 Methods for patching

You can fill a hole in a body using a number of different basic methods, all of which are controlled using the method option. These methods can be summarized as follows:

• Let Parasolid create a suitable patch to fill a hole. See Section 69.2.1.
• Fill a hole using a suitable sheet body that you supply yourself. See Section 69.2.2.
• Fill a hole by extending adjacent faces until the hole is covered. See Section 69.2.3.

69.2.1 Creating a patch

If you set method to PK_fill_hole_create_patch_c, Parasolid generates a suitable sheet body to match the boundary of the hole. This is the most common way of filling holes in a body.

Figure 69-4 Letting Parasolid generate a patch to fill a hole

When you ask Parasolid to generate a patch in this way, the boundary of the hole is maintained, and the patch meets the faces that surround the hole smoothly wherever possible. The boundary edges of the hole must form a single closed loop. If filling a gap, rather than a rubber face, you can use additional wire edges to ensure that this is the case.

You can further control the characteristics of the patch using the options described in Section 69.3, “Controlling the appearance of the result”.

69.2.2 Supplying a fill sheet

Rather than allowing Parasolid to generate a patch for you, you can supply one yourself by setting method to an appropriate value and supplying a suitable sheet body using the fill_sheet option.

The fill_sheet must be:

• Large enough to cover the hole.
• Have only one boundary.
• Have no holes.

The supplied fill_sheet is not destroyed after the call to PK_BODY_fill_hole: you should delete the fill_sheet yourself if it is no longer required for other purposes.

Different results are possible, depending on the value of method :

Figure 69-5 illustrates the differences between these two methods.

Figure 69-5 Filling a hole using a supplied fill sheet

If method is PK_fill_hole_trim_to_sheet_c, you can also use PK_BODY_fill_hole to fill the gap between two separate sheet bodies. In order to use PK_BODY_fill_hole in this way, you must ensure that the supplied sheet is at least big enough to cover the entire gap between the received edges .

Figure 69-6 shows an example where the gap between two target bodies is bridged using a fill sheet that is not as wide as the targets themselves. In order to achieve this, vertices were imprinted on the targets so as to create additional edges, such that each edge is no wider than the fill sheet. These edges are then received by PK_BODY_fill_hole (one from each target body) in order to successfully bridge the gap.

Figure 69-6 Bridging the gap between two sheet bodies.

69.2.3 Growing neighboring faces

A final method of filling a hole is to extend neighboring faces so that they cover the hole. You can do this by setting method to PK_fill_hole_extend_adjacent_c.

The advantage of this method is that you do not need to supply a fill_sheet , and Parasolid does not need to generate a patch face. However, it can only be used in cases where the configuration is such that the hole can be filled simply by extending the existing faces. In addition, since no new faces are created, there is no way of identifying the patched area once the fill hole operation has succeeded.

Figure 69-7 Filling a hole by extending neighboring faces

[back to top]

69.3 Controlling the appearance of the result

If you let Parasolid generate a patch to fill a hole, there are several options that let you control the appearance of the result body. These options give you control over the topology of the patch itself, the smoothness of any edges involved, and whether the patch should be attached to the target. The following table summarizes the options available:

69.3.1 Controlling the topology of the patch

You can use the patch_topology option to control the number of faces in any patches generated by PK_BODY_fill_hole. This option takes the following values:

69.3.2 Specifying whether boundary edges are smooth

You can choose the preferred method of filling the hole using the fill_preference option. You can use this option to choose whether to fill the hole with a sheet that is smooth at the hole boundary, or one that is not.

Possible values are:

Figure 69-8 shows a simple example that illustrates the different results that can be produced by specifying either PK_fill_hole_smooth_c or PK_fill_hole_non_smooth_c.

Figure 69-8 Generating patches with smooth and non-smooth boundary edges

The resulting patch that is generated depends very much on the configuration of the initial hole, and in particular whether a planar solution is possible. Figure 69-9 shows an example in which such a planar solution is possible. In this case, all values of fill_preference except for PK_fill_hole_smooth_c produce this planar solution, as shown.

Figure 69-9 Filling planar holes with faces that have smooth and non-smooth boundaries

Figure 69-10 shows a similar configuration, with the exception that a planar solution is not possible. In this case, only PK_fill_hole_non_smooth_c produces a result that can be considered similar to the planar solution of Figure 69-9. Both PK_fill_hole_smooth_c and PK_fill_hole_prefer_plane_c produce a smooth solution and PK_fill_hole_plane_only_c fails completely.

Figure 69-10 Filling non-planar holes with faces that have smooth and non-smooth boundaries

69.3.2.1 Controlling the smoothness of boundary edges

If you have requested a smooth result (that is, fill_preference is PK_fill_hole_smooth_c or PK_fill_hole_prefer_plane_c), you can control whether that result is G1 or G2 smooth using the smoothness option. By default, all smooth fill sheets are G1 smooth. You can request G2 smoothness ( smoothness is PK_continuity_g2_c) if the following are also true:

• method is PK_fill_hole_create_patch_c. See Section 69.2.1.
• optimise is PK_fill_hole_opt_quality_c. See Section 69.7.

For a successful G2 smooth result, G2 smoothness conditions must also be met by the boundary faces, boundary edges, and any supporting bodies, unless non_g2_behaviour is set to PK_fill_hole_non_smooth_allow_c (see Section 69.3.3 for more information). If these conditions are not met, a Parasolid Report of type PK_REPORT_3_fill_hole_non_g2_c is generated.

See the reference documentation for PK_BODY_fill_hole for more information.

See Chapter 11, “Using Reports”, for more information about the Parasolid Report mechanism.

69.3.2.2 Specifying exceptions for smooth boundary edges

The non_smooth_edges and non_g2_smooth_edges arrays contain edges on the hole boundary for which the smoothness requirements are relaxed:

• non_smooth_edges is an array of boundary edges that do not have to be G1 smooth.
• non_g2_smooth_edges is an array of boundary edges that do not have to be G2 smooth.

Edges specified in either of these arrays must form part of the hole boundary, and must therefore be present in the edges array passed to PK_BODY_fill_hole.

69.3.3 Controlling behaviour of non-smooth edges

Where smoothness is set to either PK_continuity_g1_c, or PK_continuity_g2_c, there could be cases where the boundary faces, edges, and supporting bodies are not sufficiently G1 or G2 smooth to allow this.

In these circumstances, you can control how to proceed filling the hole using either the non_g1_behaviour or the non_g2_behaviour option respectively. These options take the following values:

In both cases, a Parasolid Report is produced indicating where the boundary edges do not meet the smoothness requirements. The types of report produced are as follows:

• PK_REPORT_3_fill_hole_non_g1_c (does not meet the G1 smoothness requirements)
• PK_REPORT_3_fill_hole_non_g2_c (does not meet the G2 smoothness requirements)

See Chapter 11, “Using Reports”, for more information about the Parasolid Report mechanism.

69.3.4 Specifying smoothness of internal edges

You can choose whether or not any internal edges in a generated patch are smooth using the internal_smoothness option. This takes the following values:

Figure 69-11 shows an example in which a patch can only be generated if internal_smoothness is set to its default value.

Figure 69-11 Sharp internal edges in a patch

Conversely, Figure 69-12 illustrates an example that can only be successfully filled when internal_smoothness is PK_fill_hole_patch_eds_smooth_c.

Figure 69-12 Smooth internal edges in a patch

69.3.5 Attaching the sheet to the result body

You can use the attach_sheet option to choose whether or not to attach the fill sheet to the body or not. The default value for this option is PK_LOGICAL_true, and this is the setting you should use in the majority of situations. However, if you have asked Parasolid to create a patch for you (as described in Section 69.2.1, “Creating a patch”), then you can set attach_sheet to PK_LOGICAL_false if you want to return the patch created by Parasolid as a separate body. You could use this option, for instance, to generate a patch that is then used as an explicit fill_sheet in a subsequent call to PK_BODY_fill_hole.

You can use the tracking information returned from PK_BODY_fill_hole to find the patch body. See Section 69.6, “Tracking and fault status”, for details.

Figure 69-13 Choosing whether to attach a patch to the result body

69.3.5.1 Tracking the edges of unattached patches

When returning the patch created by Parasolid as a separate body, you can use the tracking_control option to output additional tracking information for the boundary of the patch. This takes the following values:

PK_fill_hole_track_default_c

PK_fill_hole_track_bdry_edges_c

69.3.6 Using point (position) data to control the shape of the patch

You can use the supporting_point_sets option to control the shape of a patch using a supplied array of point data. The patch created will pass close to the supplied point data, to within tolerances supplied for each set. These tolerance must be greater than or equal to the tolerance supplied to PK_BODY_fill_hole. You can optionally supply normals within the point set data. Default: No point data set is supplied.

Figure 69-14 shows how the shape of a patch is controlled using an array of point data.

Figure 69-14 Controlling the shape of a patch with point data

[back to top]

69.4 Using supporting bodies to control the shape of a patch

The supporting_bodies option allows you to specify one or more bodies which are used to give fine control over the final appearance of a filled hole. These bodies act as guides for the operation, resulting in a patch that follows the shape described by those guides.This option takes one of the following:

• An array of wire bodies.
• A single acorn vertex, used as a point through which the resulting patch must pass.
• A single general wire body.

Figure 69-15 shows an example that illustrates how two wire bodies can be used to control the shape of one of the faces created by a fill operation: without the additional control provided by the supplied supporting_bodies , the example shown would fail.

Figure 69-15 Using an array of wire bodies to guide the shape of the patch

Figure 69-16 shows an example where the final shape of the patch is controlled by a grid defined using a single general wire body.

Figure 69-16 Using a single general wire body to define a support grid

When using this functionality, the following constraints apply, depending on the type of supporting_bodies supplied:

Figure 69-17 illustrates the use of non_smooth_edges in conjunction with a single general wire supporting body in order to produce a non-smooth result.

Figure 69-17 Using a support grid in conjunction with non-smooth edges

The supplied supporting_bodies remain unchanged after the operation.

69.4.1 Imprinting edges from supporting bodies

You can use the imprint_supporting_bodies option to control which edges are imprinted onto the patch when supporting_bodies are supplied. This takes the following values:

Figure 69-18 shows an example that illustrates how you might use this option to preserve the design intent of a model while at the same time modifying the original body. A hole is filled in a face, but a supporting body is also specified to guide the shape of the resulting patch. By default, that supporting body is not imprinted onto the patch, because the resulting internal edge is smooth. However, the original body did have an edge imprinted, and so you can optionally use the imprint_supporting_bodies option, to force imprinting of the supporting body, as shown.

Figure 69-18 Controlling imprinted edges from supporting bodies.

69.4.2 Applying clamps to acorn supporting bodies

If you supply an acorn vertex as a supporting body, you can also supply the specification for a clamp to apply at that point. The specified clamp constrains the tangency of the surface patch at the location of the supporting body, providing you with extra control over the shape of the patch.

You use the following options to specify clamp information:

n_clamps

clamps

clamp_indices

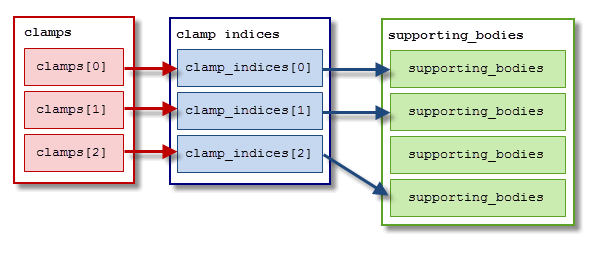

Figure 69-19 shows how the clamps you specify map onto supplied supporting_bodies using the clamp_indices array. In this example, three clamps are supplied, and these are used with three of the four supplied supporting_bodies : the third supporting body is not clamped in any way.

Figure 69-19 Specifying clamps for different supporting bodies

The information required for each clamp is specified in the clamps structure, which takes the following fields:

type

planar_clamp

Figure 69-20 illustrates the different effects that you can achieve by specifying different clamps.

• By default, no clamp is supplied. This produces a patch that contains a sharp point at the position of the supporting body.
• If you set type to PK_fill_hole_clamp_planar_c (and do not supply planar_clamp ), the result is a smooth patch.
• If you also supply a planar_clamp with a normal , the shape can be further modified as shown.

Figure 69-20 Different clamps possible with an acorn supporting body

69.4.3 Tracking edges imprinted from supporting bodies

When supporting_bodies are supplied, PK_BODY_fill_hole tracks any edges that are imprinted as a result of the option. See Section 69.6, “Tracking and fault status”, for more information.

[back to top]

69.5 Using tolerances

PK_BODY_fill_hole needs to be supplied with a tolerance argument that is used to determine the tolerance to which the fill hole operation is performed. This argument can affect a number of different aspects of the functionality, so you need to bear this in mind when deciding the type of results you want to achieve. In general, looser tolerances (i.e. larger tolerance values), produce simpler, but less accurate, result bodies. Tighter tolerances (i.e. smaller tolerance values) lead to more accurate results.

The following table provides more details about the areas that are affected by your choice of tolerance:

Figure 69-21 illustrates a case where a wire body that is nearly, but not quite, planar has been filled using different tolerances. Using a tight tolerance, an accurate result is produced, but the resulting surface is a B-surface that is not planar. By increasing the tolerance, an analytic result that uses a planar surface is produced. However, the boundary edge of the resulting surface has an associated tolerance that was not in the original unfilled body.

Figure 69-21 Using tolerance information to affect fill hole results

[back to top]

69.6 Tracking and fault status

In order to track changes to entities and record fault status, PK_BODY_fill_hole returns the following arguments.

tracking

fault

n_fault_topols

fault_topols

69.6.1 Tracking faces in patches

If method is PK_fill_hole_create_patch_c, each face created for the patch is recorded in a track record with its track field set to PK_TOPOL_track_create_c. If you have chosen to return the patch as a separate body, rather than attaching it to the target (see Section 69.3.5), then you can find that body by passing any of these faces to PK_FACE_ask_body.

69.6.2 Tracking imprinted edges

If supporting_bodies are supplied in the the call to PK_BODY_fill_hole (see Section 69.4, “Using supporting bodies to control the shape of a patch”), then edges imprinted onto a patch from these supporting_bodies are tracked. For each imprinted edge, there is a track record with the following fields set:

track

product_topols

original_topols

69.6.3 Tracking the edges of unattached patches

If the tracking_control option is set to PK_fill_hole_track_bdry_edges_c (see Section 69.3.5.1, “Tracking the edges of unattached patches”), track records will be output to map the supplied boundary edges to boundary topologies on the patch. Each track record contains the following fields:

track

product_topols

original_topols

[back to top]

69.7 Optimising the fill hole operation

Because there are often potentially several different results possible when filling a hole in a body, depending on the configuration and the options chosen, Parasolid provides the optimise option to let you choose whether Parasolid should produce a solution with the best quality, or whether an emphasis should be placed on performance. The optimise option takes the following values:

[back to top]

69.8 Controlling the type of the resulting body

You can use the body_type option to choose whether the resulting body is a sheet or a solid. This option takes the following values:

[back to top]

69.9 Checking face-face inconsistencies

You can use the check_fa_fa option to control whether Parasolid checks for face-face inconsistencies in the result body. This can take the following values:

[back to top]

69.10 Update control

If your application relies on reproducing behaviour when updating models built using earlier versions of Parasolid, you should use the update option to preserve old behaviour and help eliminate differences in rebuild results. This option lets you disable some fill hole enhancements that have been added at different Parasolid versions. Doing this ensures that PK_BODY_fill_hole gives the same results in the latest version of Parasolid as in earlier versions. See PK_fill_hole_update_t in the PK Interface Programming Reference Manual for more information on this update option.
