Blend Reordering
The blend re-ordering algorithm enables the blending of edges between two existing blend faces, when the radii of the existing blends is smaller than that of the new blend. The new blend surfaces are made up as though the larger radius blend had been done before the smaller radius blends. The blend re-ordering algorithm can blend edges between two blends of different radii, whether both or just one of these blends has a smaller radius than the new blend.

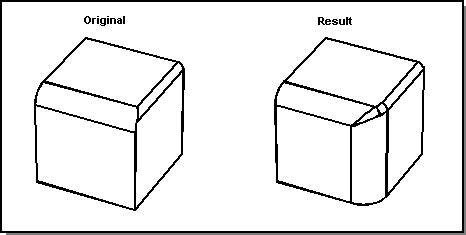

Figure. Blend Reorder
