Component Dependencies
A software component may be dependent on others. All ACIS components are ultimately dependent upon the Base Component. The following figure shows a dependency graph for the core ACIS components, using the abbreviations of the component names (as shown in Table. Software Components). The core components are those components of ACIS that provide modeling functionality and are highlighted in green.
The component dependencies are indicated by lines flowing from one component down to the component(s) on which it is dependent. All dependency paths flow down.

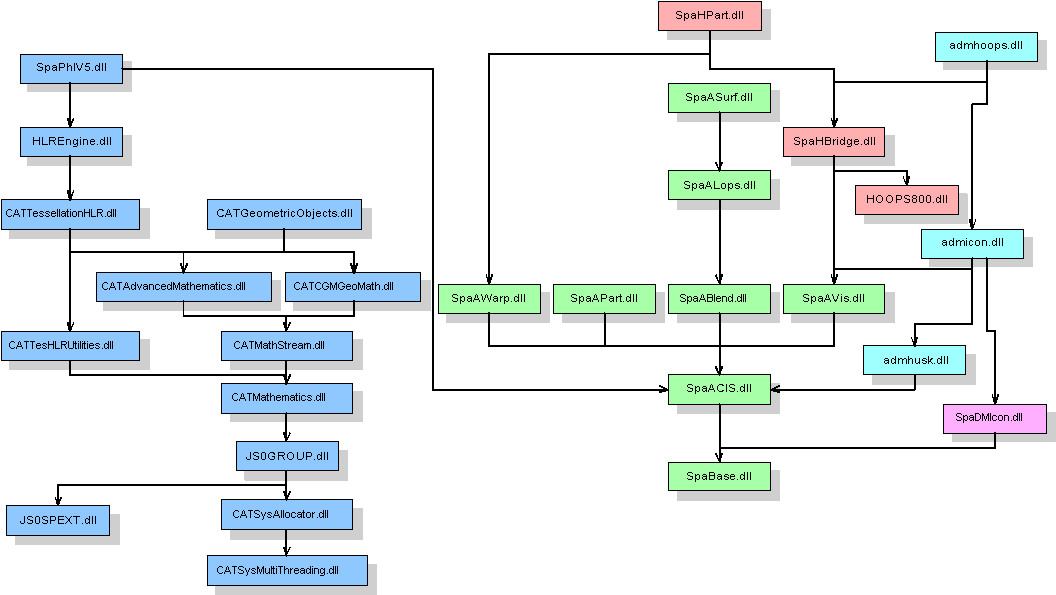

Figure. ACIS Core Component Dependencies
